凤凰写卡器设计与制作

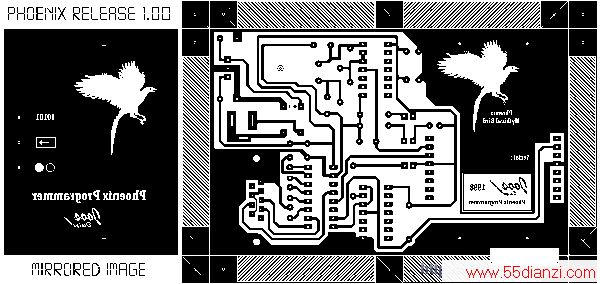

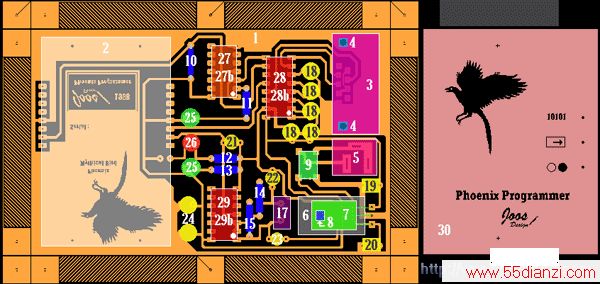

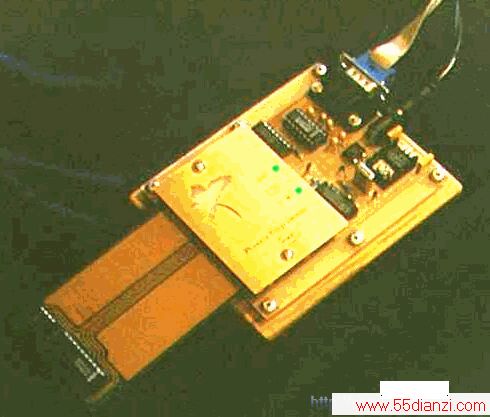

    这是我在网上看到的凤凰写卡器,很简单,不过都是英文,相关的编程软件没有提供,不过通用的软件ICPROG应该是可以使用的.要制作可以刷写卫星电视接收卡就是这么简单.元件清单:POS NO SPEC. RS PART NO.__________________________________________________________1 Main board2 Smart Card Connector 197-11973 9 Way D connector - socket 446-5854 Fastening Screws5 DC Power Connector 486-6626 Heat Sink - only needed for heavily use L=19mm W=13mm>7 5V Regulator 853-3718 Fastening Screw9 Bridge Rectifier 657-08810 Resistor 20K ohm 163-76311 Resistor 220 ohm 149-65012 Resistor 220 ohm 149-65013 Resistor 220 ohm 149-65014 Resistor 2K2 ohm 149-73915 Resistor 1M ohm 149-97516 Not used17 Crystal 3.579 MHz 226-150018 CaPACitor 1 uF 200-616719 Capacitor 0.1 uF 115-98820 Capacitor 0.33 uF 116-03221 Capacitor 100 pF 128-16822 Capacitor 27 pF 128-76323 Capacitor 27 pF 128-76324 Capacitor 33 uF - only needed for heavy use 116-88025 LED green 590-34526 LED red 590-33927 IC 7407N 306-33627b IC socket 14 PIN 447-31428 IC MAX232ECPE 225-851028b IC socket 16 pin 447-32029 IC 74HC04N 217-555029b IC socket 14 pin 447-31430 Secondary board, on top of smartcard connector.Mount everything but the secondary board, leds and ICsMount top of leds into the secondary board, fasten secondary board to top of smartcard connectorafter carefully first having put the led legs through the holes in main board.Finally , ground yourselves to get rid of any statics and mount the ICs.
