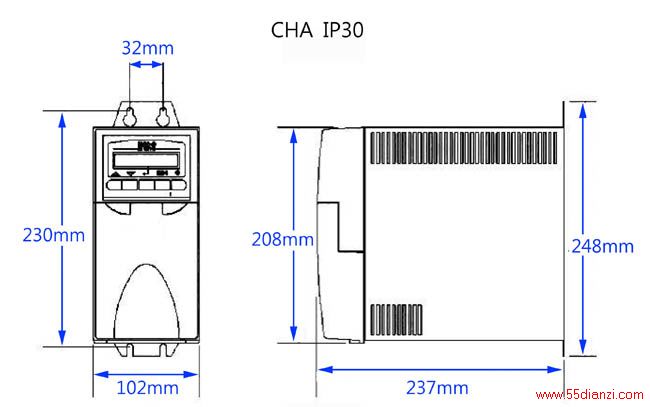

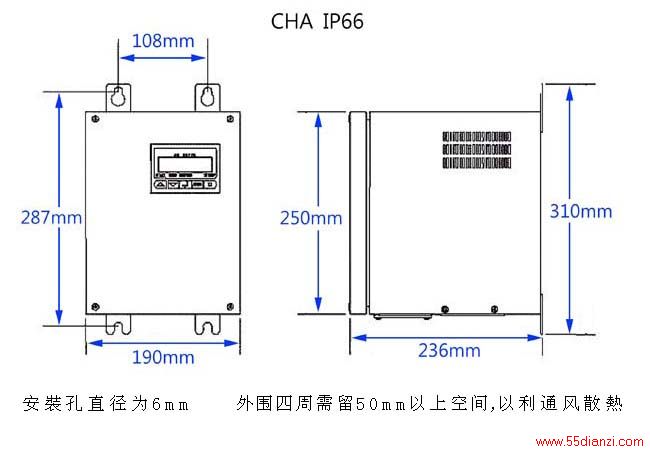

MSC3-CHA(1.5KW~5.5KW)
Model NameR3R5R7R11J3J5J7J11L3L5L7L11Rating Current(A)3.657.110.73.657.110.73.657.110.7Rating Power (KW)1.5.2.23.75.51.52.23.75.51.52.23.75.5Input Voltage(V)380Vac(-15%) to 480Vac(+10%)3Phase400 ~ 680Vdc440Vac(-15%) to 600Vac(+10%)3 Phase 550 ~ 850Vdc208Vac(-15%) to 240Vac(+10%)3 Phase250 ~ 340VdcInput Frequency48 ~ 62 Hz48 ~ 62 Hz48 ~ 62 HzOutput Voltage0 to input voltageOutput Frequency0 to 200 HzOverload110% , continuous 1 minuteControl SystemSensorless flux Vector , Sine coded PWMFrequency Resolution0.10HzFrequency Linearity0.2% of maximum frequencyCommunicationsModbus , lonWorks , Metasys via RS-485 (option)Braking ModeDynamic braking (option) , Control stopAccel & Decel AdjustmentIndependent Accel & Decel adjustment with S-curveAnalogue Input/Output0~5V , 0~10V ; 0~20mA , 4~20mADigital Input5 Degital input with programmable control functionalityRelay Output2 relays type NO / NC with programmable functionalityLocal ControlComprehensive local control include Start (FWD/REV) , Stop , Reset , and Set SpeedDisplay Screen16 character*2 line alphanumeric , Backlight and auto contrast .Run VariablesOutput frequency(Hz) , Motor Speed(RPM) , % Load , Output current(A) , Power(KW) , Output Voltage(V) , Temperature , I2t used process variable scaleProtectionCurrent limit , Over voltage , Under voltage , Short circuit , Earth fault , Phase monitoring ,Motor electronic thermal overload , Over temperatureSafety StandardUL508C , AS3100Enclosure RatingIP30 (NEMA 1) & IP66 (NEMA 4) & IP66 stainless steelOperating Temperature0 ~ 40oC , up to 50oC with deratingRelative Humidity90% RH , non-condensingService Conditions1000M or less no derating : not subject to direct sunlight or corrosive/explosiveSize for IP30 (H*W*D*)244*102*235(mm)Size for IP66 (H*W*D*)310*190*236(mm)
