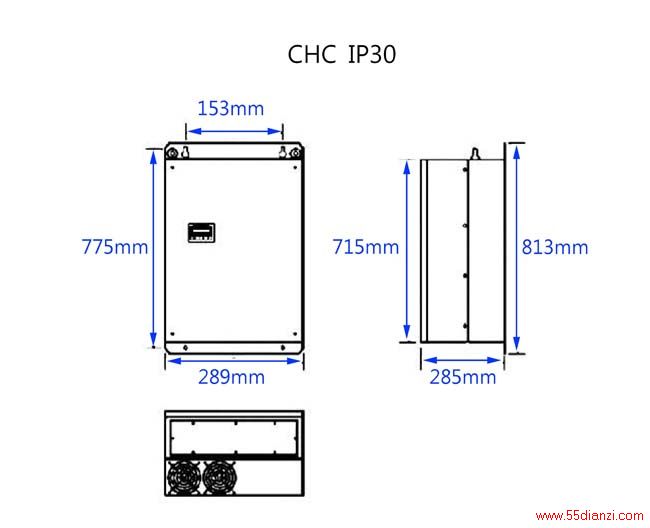

MSC3-CHC (30KW~90KW)
Model NameR55R82R109R140R170L55L82L109L140L170Rating Current(A)55821091401705582109140170Rating Power(KW) 30375575903037557590Input Voltage(V)380Vac(-15%) to 480Vac(+10%)3 Phase 400 ~ 680Vdc208Vac(-15%) to 240Vac(+10%)3 Phase250 ~ 340VdcInput Frequency48 ~ 62 Hz48 ~ 62 HzOutput Voltage0 to input voltageOutput Frequency0 to 200 HzOverload110% , continuous 1 minuteControl SystemSensorless flux Vector , Sine coded PWMFrequency Resolution0.1HzFrequency Linearity0.2% of maximum frequencyCommunicationsModbus , lonWorks , Metasys via RS-485 (option)Braking ModeDynamic braking (option) , Control stopAccel & Decel AdjustmentIndependent Accel & Decel adjustment with S-curveAnalogue Input/Output0~5V , 0~10V ; 0~20mA , 4~20mADigital Input5 Degital input with programmable control functionalityRelay Output2 relays type NO / NC with programmable functionalityLocal ControlComprehensive local control include Start (FWD/REV) , Stop , Reset , and Set SpeedDisplay Screen16 character*2 line alphanumeric , Backlight and auto contrast .Run VariablesOutput frequency(Hz) , Motor Speed(RPM) , % Load , Output current(A) , Power(KW) ,Output Voltage(V) , Temperature , I2t used process variable scaleProtectionCurrent limit , Over voltage , Under voltage , Short circuit , Earth fault , Phase monitoring , Motor electronic thermal overload , Over temperatureSafety StandardUL508C , AS3100Enclosure RatingIP30 (NEMA 1) & IP66 (NEMA 4) & IP66 stainless steel; R170 & L170: IP30 & IP54 onlyOperating Temperature0 ~ 40oC , up to 50oC with deratingRelative Humidity90% RH , non-condensingService Conditions1000M or less no derating : not subject to direct sunlight or corrosive/explosiveSize for IP30 (H*W*D*)813*289*285(mm)Size for IP66 (H*W*D*)715*470*290(mm)
