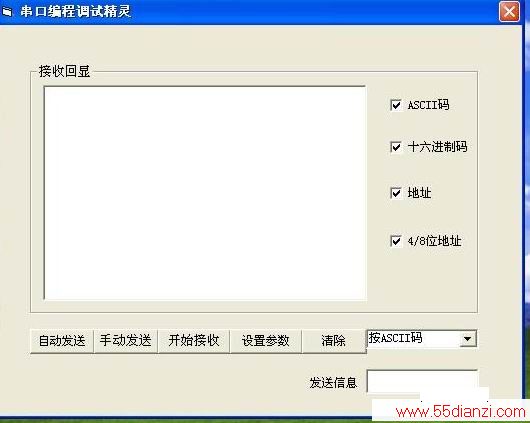

基于VB做的串口编程调试软件

'**********************************

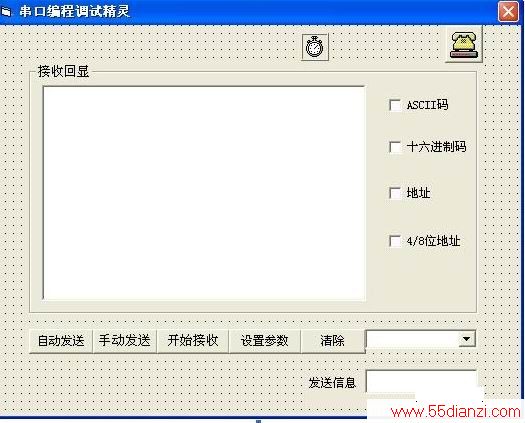

'窗体 main(main.frm)_程序
'**********************************

'**********************************
'字符表示的十六进制数转化为相应的整数
'错误则返回  -1
'**********************************

Function ConvertHexChr(str As String) As Integer

    Dim test As Integer

    test = Asc(str)
    If test >= Asc("0") And test <= Asc("9") Then
        test = test - Asc("0")
    ElseIf test >= Asc("a") And test <= Asc("f") Then
        test = test - Asc("a") + 10
    ElseIf test >= Asc("A") And test <= Asc("F") Then
        test = test - Asc("A") + 10
    Else
        test = -1                                       '出错信息
    End If
    ConvertHexChr = test

End Function

'**********************************
'字符串表示的十六进制数据转化为相应的字节串
'返回转化后的字节数
'**********************************

Function strHexToByteArray(strText As String, bytByte() As Byte) As Integer

    Dim HexData As Integer          '十六进制(二进制)数据字节对应值
    Dim hstr As String * 1          '高位字符
    Dim lstr As String * 1          '低位字符
    Dim HighHexData As Integer      '高位数值
    Dim LowHexData As Integer       '低位数值
    Dim HexDataLen As Integer       '字节数
    Dim StringLen As Integer        '字符串长度
    Dim ACCount As Integer          '计数

    strTestn = ""                   '设初值
    HexDataLen = 0
    strHexToByteArray = 0

    StringLen = Len(strText)
    Account = StringLen \ 2
    ReDim bytByte(Account)

    For n = 1 To StringLen

        Do                                              '清除空格
            hstr = Mid(strText, n, 1)
            n = n + 1
            If (n - 1) > StringLen Then
                HexDataLen = HexDataLen - 1

                Exit For
            End If
        Loop While hstr = " "

        Do
            lstr = Mid(strText, n, 1)
            n = n + 1
            If (n - 1) > StringLen Then
                HexDataLen = HexDataLen - 1

                Exit For
            End If
        Loop While lstr = " "
        n = n - 1
        If n > StringLen Then
            HexDataLen = HexDataLen - 1
            Exit For
        End If

        HighHexData = ConvertHexChr(hstr)
        LowHexData = ConvertHexChr(lstr)

        If HighHexData = -1 Or LowHexData = -1 Then     '遇到非法字符中断转化
            HexDataLen = HexDataLen - 1

            Exit For
        Else

            HexData = HighHexData * 16 + LowHexData
            bytByte(HexDataLen) = HexData
            HexDataLen = HexDataLen + 1


        End If

    Next n

    If HexDataLen > 0 Then                              '修正最后一次循环改变的数值
        HexDataLen = HexDataLen - 1
        ReDim Preserve bytByte(HexDataLen)
    Else
        ReDim Preserve bytByte(0)
    End If


    If StringLen = 0 Then                               '如果是空串,则不会进入循环体
