Avago公司的 AFBR-700SDZ收发器采用850nm VCSEL 和 PIN检测技术，具有非常高的端口密度，能提供与10GBASE-SR标准兼容的IEEE 10Gb以太网设计。AFBR-700SDZ光收发器支持多模光纤的高速串行连接，信号速率高达10.313 GBd。本文介绍了AFBR-700SDZ收发器的主要性能和指标，功能方框图，典型的应用配置以及建议使用的电源滤波器。
AFBR-700SDZ 10Gb Ethernet, 850 nm, 10GBASE-SR, SFP+ Transceiver
性能描述：
The Avago AFBR-700SDZ transceiver is part of a family of SFP+ products. This transceiver utilizes Avago’s 850nm VCSEL and PIN Detector technology to provide an IEEE 10Gb Ethernet design compliant with the 10GBASE-SR standard. The AFBR-700SDZ transceiver is designed to enable 10Gb Ethernet equipment designs with very high port density based on the new electrical and mechani¬cal specification enhancements to the well known SFP specifications developed by the SFF Committee. These specifications are referred to as SFP+ to recognize these enhancements to previous SFP specifications used for lower speed products. Avago Technologies is a an active participant in the SFF Committee specification develop¬ment activities.
Avago’s AFBR-700SDZ optical transceiver supports high-speed serial links over multimode optical fiber at signal¬ing rates up to 10.313 GBd. The AFBR-700SDZ is compliant with SFF-8431 Specifica¬tions for Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable Module “SFP+” and SFF-8472 Specification for Diagnostic Monitoring Interface for Optical Transceivers. Real time temperature, supply voltage, laser bias current, laser average output power and received input power information is provided with the two-wire interface de¬fined in SFF-8472. This information is in addition to con¬ventional SFP base data. The digital diagnostic interface also adds the ability to disable the transmitter (TX_DIS¬ABLE), monitor for Transmitter Faults (TX_FAULT), and monitor for Receiver Loss of Signal (RX_LOS).
主要特性：
Avago 850nm VCSEL source and Transmitter Optical Subassembly technology
Avago PIN detector and Receiver Optical Subassembly technology
Typical power dissipation 600mW
Full digital diagnostic management interface
Avago SFP+ package design enables equipment EMI performance in high port density applications with margin to Class B limits
性能指标：
Optical interface specifications per IEEE 802.3ae 10GBASE-SR
Electrical interface specifications per SFF Committee SFF 8431 Specifications for Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable Module “SFP+”
Management interface specifications per SFF Committee SFF 8431 and SFF 8472 Diagnostic Monitoring Interface for Optical Transceivers
Mechanical specifications per SFF Committee SFF 8432 Improved Pluggable Formfactor “IPF”
LC Duplex optical connector interface confirming to ANSI TIA/EA 604-10 (FOCIS 10A)
Compliant to Restriction on Hazardous Substances (RoHS) per EU and China requirements
Class 1 Eye safe per requirements of IEC 60825-1 /CDRH

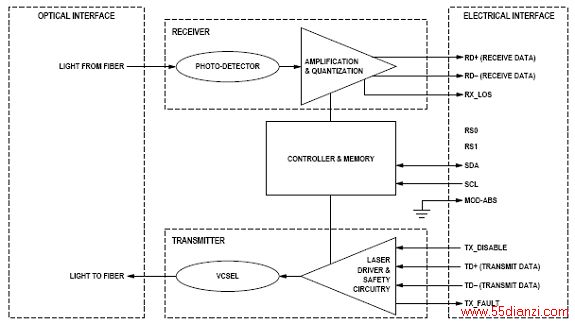

图1。AFBR-700SDZ收发器功能方框图

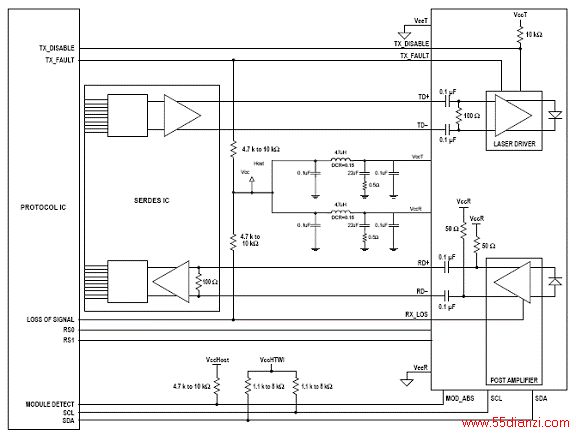

图2。AFBR-700SDZ收发器典型的应用配置

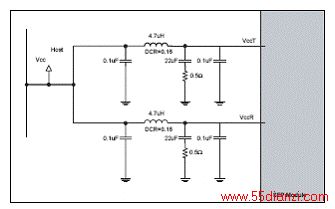

图3。建议使用的电源滤波器
Compliant to Restriction on Hazardous Substances (RoHS) directive
Diagnostic features per SFF-8472
Real time monitoring of:
Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage
Transceiver specifications per SFF-8431 (revision 2), IEEE Std. 802.3ae Clause 52 and SFF-8472 (revision 10.1) Link lengths at 10.3125 GBd:– 82 m with 50 μm OM2, 300 m with 50 μm OM3
LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
Enhanced EMI performance for high port density applications
