Holtek 公司的HT95R5x/HT95R6x是八位电话通信产品微控制器，具有8KB或16KB ROM、2112B RAM、40端I/O、8级堆栈、内建三个16位定时器、一个RTC定时器及四个外部中断触发等. 此外，还有12位DAC及SPI/I2C，经由与外部闪存语音ROM通讯接口，可产生多种语音，具有高集成度、低成本、低耗电和高效能等特点,非常适合带语音功能通讯产品的应用如多功能电话、无线电话、录音机、家庭安防等。本文介绍HT95R5x/HT95R6x主要特性,方框图,I2C和SPI方框图以及单端输入和差分输入应用电路图.
The series of CID phone MCU are 8-bit high performance, RISC architecture microcontroller devices specially designed for telephone applications. Devices flexibility are enhanced with their internal special features such as power-down and wake-up functions, DTMF generator, DTMF receiver, FSK decoder, PFD driver, SPI and I2C interface, audio DAC output, etc.
These features combine to ensure applications require a minimum of external components and therefore reduce overall product costs.
Having the advantages of low-power consumption, high-performance, I/O flexibility as well as low-cost, these devices have the versatility to suit a wide range of application possibilities such as FSK & DTMF mode Caller ID phone, Home Security products, deluxe feature phones, cordless phones, fax and answering machines, etc.
The device will be ideally suited for phone products that comply with versatile dialer specification requirements for different areas or countries. The device is fully supported by the Holtek range of fully functional development and programming tools, providing a means for fast and efficient product development cycles.
HT95R5x/HT95R6x主要特性:
_ Operating voltage:
fSYS=3.58MHz: 2.2V~5.5V
fSYS=7.16MHz: 3.0V~5.5V
fSYS=10.74MHz: 3.0V~5.5V
fSYS=14.32MHz: 4.5V~5.5V
_ Program Memory:
8K_16 (HT95R54)
16K_16 (HT95R55)
_ 2112_8 Data Memory
_ 38 bidirectional I/Os with pull-high options
_ 2 NMOS output-only lines
_ External interrupt input
_ Three 16-bit timers with interrupts
_ Timer external input
_ 8-level stack
_ 32768Hz system oscillator
_ 32768Hz up to 14.32MHz frequency-up circuit
_ Real time clock function
_ Watchdog timer function
_ PFD driver output
_ Serial Interfaces Module: SIM for SPI or I2C
_ Internal DTMF generator
_ Internal DTMF receiver
_ Internal FSK decoder
_ Support Bell 202 and V.23
_ Support ring and line reverse detection
_ 12-bit Audio DAC output
_ Power-down and wake-up feature for power-saving operation: Idle mode, Sleep mode, Green mode and Normal mode
_ Up to 0.28_s instruction cycle with 14.32MHz system clock at VDD=4.5V~5.5V
_ Bit manipulation instructions
_ Table read function
_ 63 powerful instructions
_ All instructions executed in 1 or 2 machine cycles
_ Low voltage reset function
_ Supported by comprehensive suite of hardware and software tools
_ Internal low battery detector
_ Software Controlled R-Type LCD Driver (SCOM)
_ 64-pin LQFP package

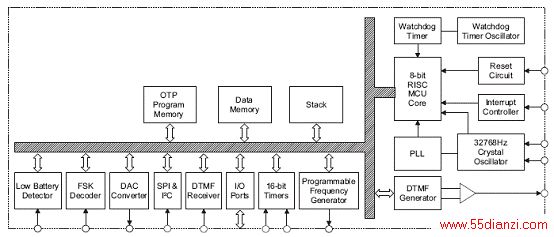

图1.HT95R5x/HT95R6x方框图

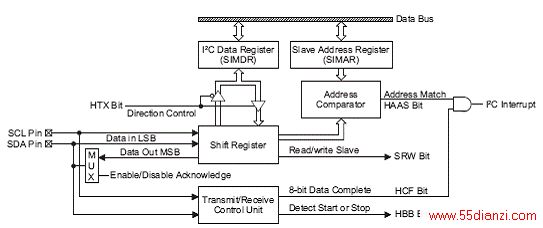

图2.HT95R5x/HT95R6x I2C方框图

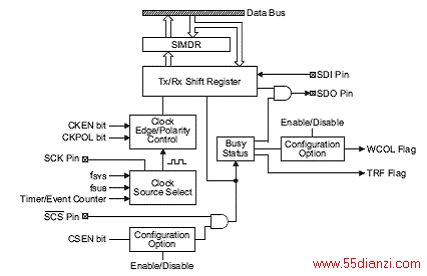

图3.HT95R5x/HT95R6x SPI方框图

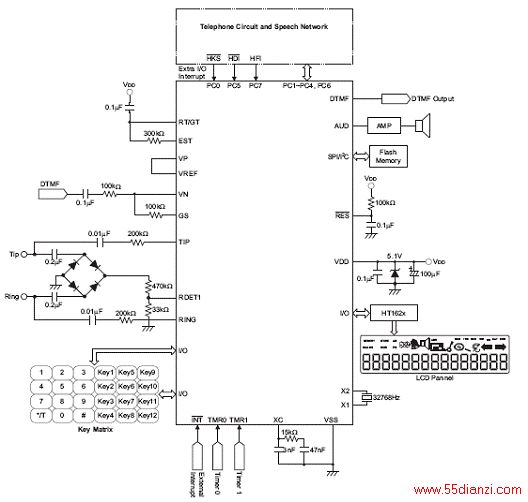

图4.HT95R5x/HT95R6x单端输入应用电路图

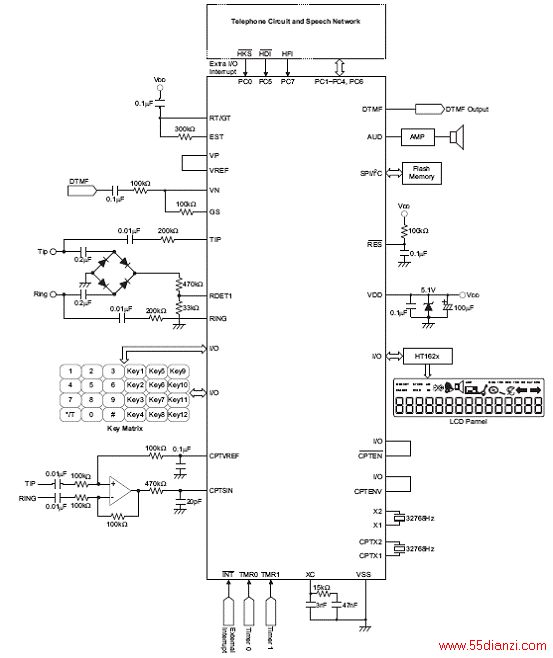

图4.HT95R5x/HT95R6x差分输入应用电路图
