Here they exist two regulator circuits, that use the IC L200, as regulator of voltage and current, the company SGS-Thomson, which give these circuits. In circuit Fig.1, we CAN regulate the output voltage, with the RV1, while in the Fig.2, we can regulate also output voltage – current, with the TR2 and TR1, respectively. More information on characteristics for L200, you can see in list datasheets. Shortly will be added also certain other useful circuits with L200.

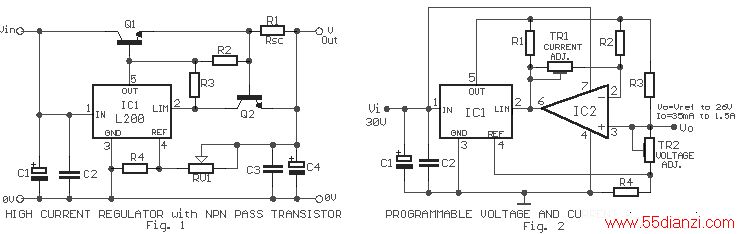

Fig. 1-High current regulator with NPN pass transistor
R1=0.7 / Io max C4=47uF 63V R2=10 ohms RV1=4.7Kohm pot. R3=1Kohm Q1=BDW51 R4=820 ohms Q2=BC108 C1=4700uF 63V IC1=L200 C2-3=100nF 100VFig. 2-Programmable voltage and current regulator
R1=1Kohm C1=4700uF 63V R2=470 ohm C2=220nF 100V R3=0.1 ohm 5W IC1=L200 R4=1Kohm IC2=LM741 TR1=100Kohm pot. TR2=10Kohm pot.本文关键字：暂无联系方式音频功率放大-放大器，单元电路 - 音频功率放大-放大器
