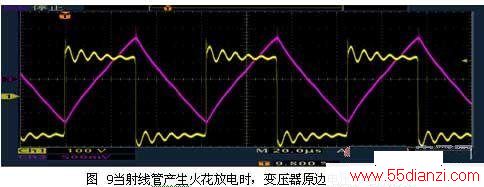

如试验结果所示，基本上符合理论和仿真的仿真结果。
5 结论
文章介绍的用于产生X射线的串并联变压器谐振高压直流电源，采用了倍压电路减小了变压器的变比，从而工艺和制造上可行，并且能够在一定条件下，实现零电流软开关大大减小了开关损耗；另为这个拓扑结构是创新型的，由于PFC的引入使得对电网的谐波污染大大减小，同时可以实现在国内外110V，220V不同电压下工作开拓了国内外市场；值得注意的是这样的拓扑结构控制简单，这个电源还利用了DSP实现数字PID实时控制使其能良好工作和实现远程通信。
6 参考文献
[1] Koki Ogura: Inductor Snubber-Assisted Series Resonant ZCS-PFM High Frequency Inverter Link DC-DC Converter with Voltage Multiplier IEEE 2002.
[2] Yong Ju Kim: Comparative Evaluations of Phase-Shifted PWM Resonant Inverter-FED DC-DC Converter with High-Voltage High-Frequency Transformer Link, IEEE Catalogue No. 95TH8025 1995.
[3] Junming Sun: Series Resonant High-Voltage ZCS-PFM DC-DC Converter for MeDICal Power EleCTRonICs, IEEE 2000.
[4] Shyh-Shin Liang and Ying-Yu Tzou: DSP control of a Resonant Swithing High-Voltage Power Supply for X-ray Generators, IEEE 2001.
[5] Belgin Tǔrkay: Harmonic FiLTEr Design and Power Factor Correction in a Cement Factory, IEEE Porto Power Tech Conference, 2001
[6] JSun: Series resonant ZCS-PFM DGDC converter with multistage rectified voltage multiplier and dual-mode
PFM control scheme for medical-use high-voltage X-ray power generator, IEE PINc.-Elecli.. Poaw Appl., Vol. 147, No. 6, November 2001.
