NXP 公司的PNX6712 采用312 MHz ARM926-EJ处理器，支持2G四频段和3G 三频段以及HSDPA/EDGE (HEDGE)，是Nexperia 蜂窝系统解决方案6712的引擎。它的电子材料清单的成本(eBoM).低于-$30 。PNX6712具有杰出的多媒体和连接功能，在蜂窝运行，音乐，视频，网络连接和安全等方面有杰出的性能，并能延长电池的寿命，待机时间750小时，MP3播放时间45小时，视频播放8小时。本文介绍PNX6712的主要性能和方框图。
The PNX6712 delivers superior voice quality and industryleading standby times. It supports quad-band 2G and tri-band 3G operation, plus HSDPA/EDGE (HEDGE).
It uses an ARM926-EJ processor, manufactured in a powerefficient, 65-nm CMOS process technology, that runs at 312 MHz and is supported by 32 kB each of instruction and data cache. For maximum flexibility, the ARM processor is complemented by two 16-bit DSP cores that can be programmed to keep pace with evolving algorithms and
new codecs. The on-chip modem delivers EGPRS Class 12 performance, with DTM class 5/9/11 and single antenna interface cancellation (SAIC).
NXPs Nexperia Cellular Multimedia Baseband PNX6712 outperforms existing HSPA-EDGE basebands in its category by combining best-in-class multimedia features, up to 750 hours of standby, 45 hours of MP3 and 8 hours of video playback, and a multitude of connectivity options for anytime, anywhere content transfer. The solution provides manufacturers a platform for high-performance multimedia phones, with a highly flexible and efficient architecture built around an ARM926-EJ processor, unique algorithms for voice and video, hardware accelerated low-power video, graphics and camera features, and built-in security and digital rights management (DRM).
Packaged into a 12x12mm footprint with a 0.4mm pitch, NXPs Nexperia Cellular Multimedia Baseband PNX6712 features single-core architecture, eliminating the need for an external multimedia co-processor. It supports the latest audio and video codecs, four microphone inputs for better voice quality, two class-D amplifiers for clear sound, W/QVGA display interfaces, and TV-out functionality. All these features are supported by over 10 connectivity interfaces, including USB Hi-Speed OTG, SDIO, SPI, most memory cards as well as system level extensions for A-GPS, NFC, BT, FM, for seamless sharing of content. The PNX6712 forms the engine of NXPs Nexperia Cellular System Solution 6712 - a powerful HSDPA/HSUPA/EDGE platform, enabling sub-$30 electronic bill-of-materials (eBoM).
PNX6712 主要特性：
Advanced communication platform
EGPRS multi-slot Class 12, DL/UL 236/236 kbps
UMTS/FDD R6, UL/DL 384/384 kbps
HSDPA 3GPP R6, category 8, DL 7.2 Mbps
HSUPA 3GPP R6, category 5, UL 2.0 Mbps
Equipped with SAIC and operator-compliant UMA
High-performance processing with 312-MHz ARM926-EJ core
32 kB each of instruction and data cache
Support for 166-MHz DDR SDRAM
Dual 16-bit DSPs for maximum audio/modem flexibility
Outstanding embedded multimedia capabilities
Extended music decode and options for music encode
Exceptional voice clarity with handset, headset, and handsfree
Longer video and music playtimes, higher-quality recording, UMTS video telephony
Leading audio performance with handset and headset
Best-in-class hardware encode and decode, and display resolutions of QVGA and WQVGA
3-Mpixel YUV/JPEG camera interface and hardware JPEG encode/decode
TV-out
Comprehensive connectivity interfaces
High-speed USB 2.0 OTG, SDIO, SPI, SD, MMC, MS
System-level extensions for A-GPS, NFC, Bluetooth, FM
Compact TFBGA487 package (12 x 12 mm, 0.4-mm pitch, PoP on request)

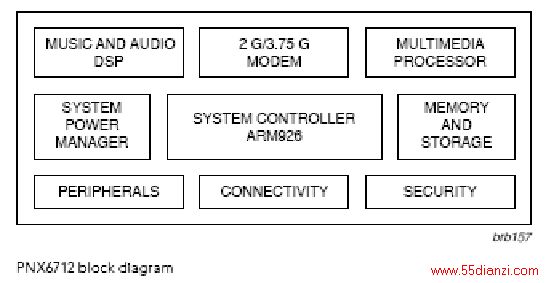

图1。PNX6712方框图
