This development kit is a highly configurable platform that enables evaluation of Intel® QuickAssist Technology. It can also be used to evaluate general embedded applications that dont require the effective performance boost of integrated acceleration.

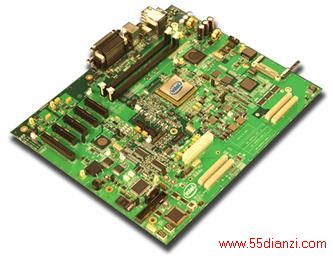

图3.EP80579开发板外形图
EP80579开发板所包含的内容:
Included in the development kit
Development board
Two (2) SKUs of the Intel EP80579 Integrated Processor with Intel QuickAssist Technology:
-1.2 GHz (installed)
-600 MHz (supplied)
Processor heat sink
DDR2 800 MHz DIMM
PCI Express* x1 graphics adapter card
SATA hard drive with cable
SATA DVD drive with cable
ATX12V 460 W power supply
Two (2) CAN/SIO UART interface adapter cables
Pre-boot firmware, installed: EFI v1.1-compliant based on American Megatrends, Inc (AMI) Aptio*4.5
EP80579开发板主要特性:
System memory
Supports two 240-pin DDR2 DIMMs
400/533/667/800 MHz DDR2 memory
Dual rank or single rank
256 MB to 4 GB memory
Unbuffered/registered ECC and non-ECC
Peripheral I/O interfaces
Three (3) UART serial ports
Three (3) Gigabit Ethernet RJ45 interfaces
Two (2) Controller Area Network (CAN) headers
Two (2) USB (1.1 or 2.0) interfaces
Two (2) SATA (Gen 1 or Gen 2) interfaces
One (1) floppy drive interface
PS/2 mouse and keyboard connectors
One (1) parallel port
图4. 具有Intel QuickAssist 技术的EP80579处理器开发板方框图
