ML510嵌入式开发平台主要特性:
ATX form factor motherboard and ATX-compliant power supply
Dual DDR2 registered DIMMs; each 512 MB density and 72 bits wide
512 MB CompactFlash (CF) card and System ACE CF controller for configuration*
Intel P30 StrataFlash linear flash chip (256 Mb)
Two onboard 10/100/1000 Ethernet PHYs with RJ-45 connectors
PCI Express interface and MIC2592B PCI Express power controller
Two UARTs with RS-232 connectors
DVI graphics interface
LEDs, LCD*, and switches
32/33 PCI subsystem
Two 3.3V slot and two 5V slots
ALi South Bridge SuperIO controller
PS/2 mouse and keyboard connectors
3.5mm headphone and microphone connectors
Two USB peripheral ports
Two serial ATA connectors
Xilinx Personality Module (XPM) interface for access to:
RocketIO GTX transceivers
SPI4.2
GPIO
Power
JTAG and trace debug ports
High-speed I/O through RocketIO GTX transceivers
Encryption battery
Fan controller
Onboard power regulators for all necessary voltages
IIC/SMBus interface*
LTC1694 SMBus accelerator
RTC8566 Real Time Clock (RTC)
64 kb 24LC64 EEPROM
LM87 voltage/temp monitor
Two DDR2 DIMMs with SPD EEPROMs
SPI EEPROM (64 Kb)*

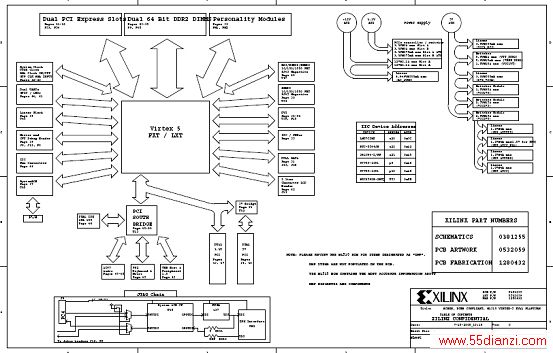

图1.ML510方框图

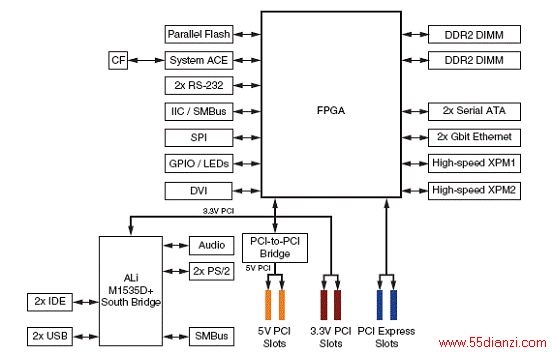

图2.ML510嵌入式开发平台外形图

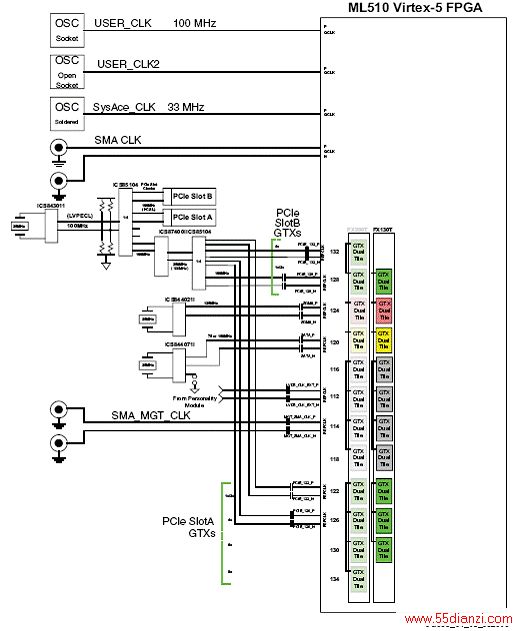

图3.ML510时钟分布图
图4.ML510嵌入式开发平台方框图
